Reciprocating Compressor

Reciprocating compressors, both lubricated or oil free compressors, can be a cost effective solution for applications that do not require 24/7 operation or when higher pressures are required. Blackhawk can recommned the best reciprocating compressor for any manufacturing process or project.

Get a Quick Quote

Proven Performance & Legendary Durability

For over 50 years, oil-flooded rotary screw compressors have been the workhorse of modern industry. Blackhawk Equipment partners with Sullair to deliver solutions that go beyond basic air compression. Our units feature US-engineered rotors and optimized air ends designed to lower your kW/cfm ratio—delivering maximum air power with minimum energy consumption.

Whether for general manufacturing, automotive, or heavy-duty industrial applications, our oil-flooded systems offer a maintenance-friendly design and some of the quietest dBA ratings on the market.

10-Year Diamond Warranty

Standard on most models for long-term peace of mind.

Sullube® Lubricant

10,000-hour non-varnishing, biodegradable fluid life.

US-Engineered Rotors

Time-proven Sullair air end technology for superior longevity.

Reciprocating Compressors

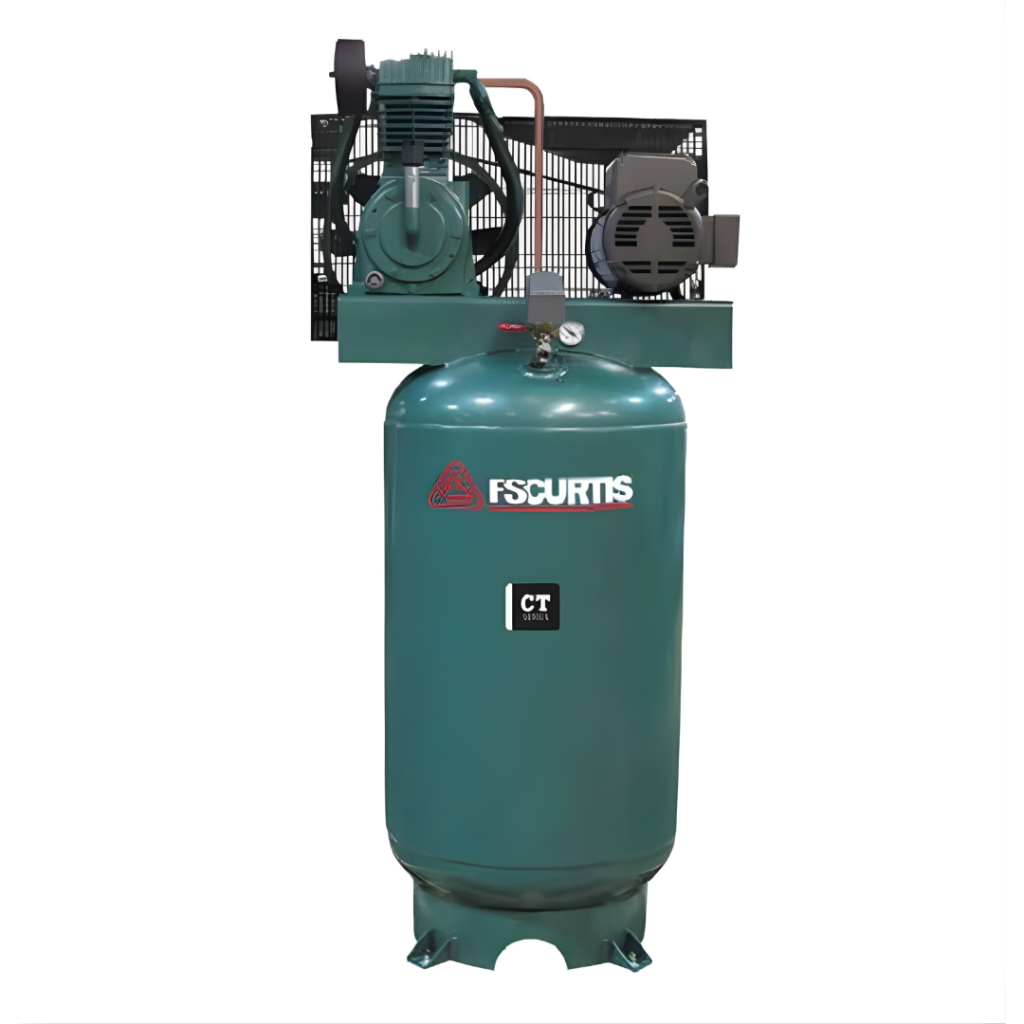

CT & CTS Series

Light Industrial Air Compressors

The FS-Curtis CT & CTS Series combines performance with affordability, offering a rugged solution for light industrial and automotive applications. Designed for intermittent duty, these splash-lubricated compressors feature a simple, robust cast-iron construction that provides long-term reliability without the high cost of heavy-industrial models.

Key Features:

Rugged Simplicity: Features a cast-iron pump and industrial design, making it one of the most durable compressors in the entry-level category.
Versatile Configurations: Available in simplex or duplex setups, with electric or gas-driven options to suit shop requirements.
Splash Lubrication: Reliable splash oiling system ensures internal components remain lubricated during operation.
Value Oriented: Ideal for automotive shops and light manufacturing where 24/7 operation is not required.

Technical Specifications:

Power: 2 – 10 hp.
Duty: Intermittent / Splash Lubricated.
Cylinders: Cast Iron.

More Information

Request Quote

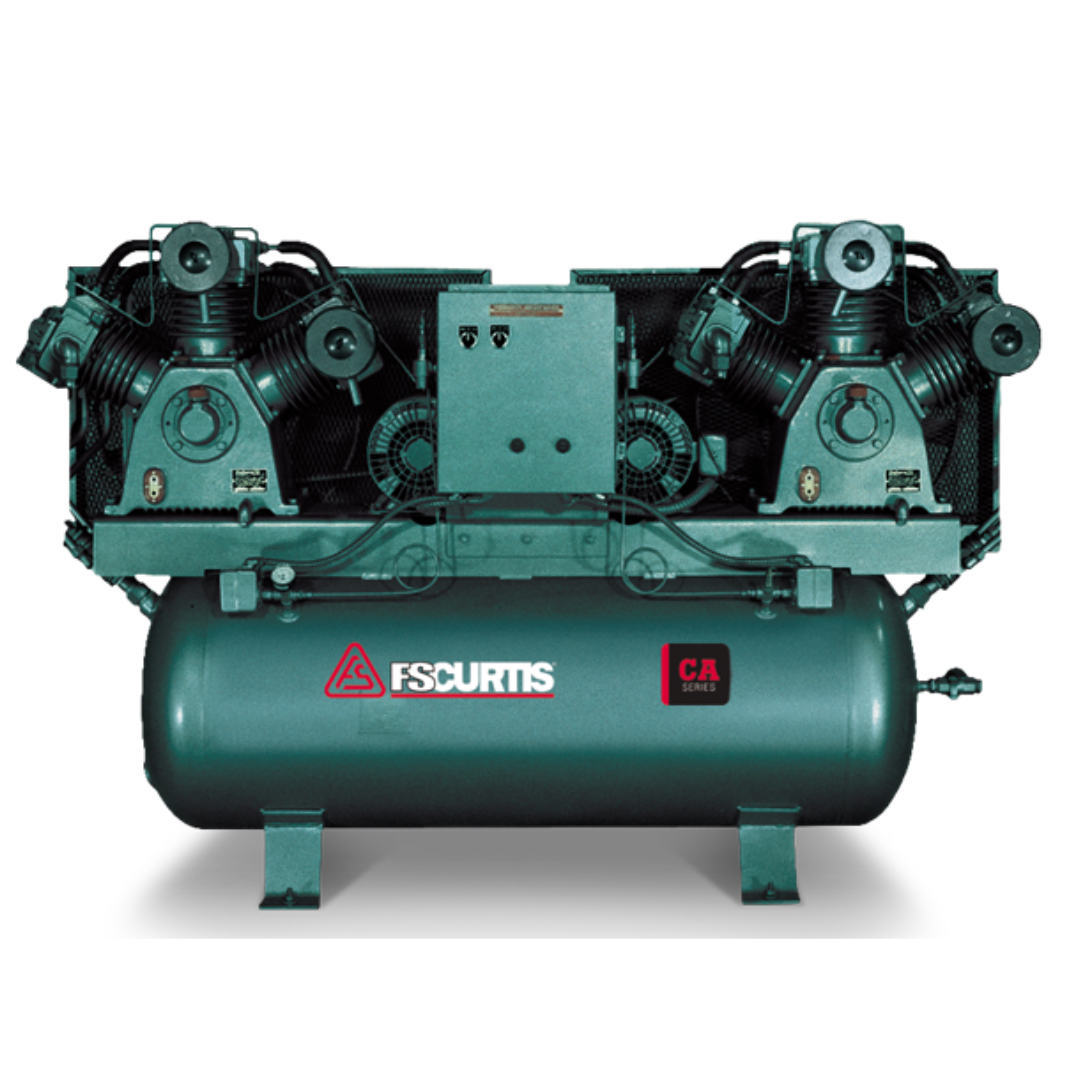

CA Series & UltraPack

Heavy-Duty Cast Iron Compressors

The CA Series sets the standard for durability with its 100% cast-iron construction, from the cylinders to the crankshaft. Designed for heavy-duty applications, efficient heat dissipation and slow-turning pumps maximize service life, while the optional UltraPack creates a plug-and-play solution with integrated air treatment.

Key Features:

100% Cast Iron: Unlike competitors using aluminum, the CA Series features cast-iron cylinders, heads, and connecting rods for unmatched longevity.
UltraPack Advantage: Available as a fully packaged system including an air-cooled aftercooler, magnetic starter, automatic tank drain, and low oil shutdown.
Stainless Steel Valves: High-flow, heavy-duty stainless steel valve discs deliver more CFM per horsepower than standard designs.
Corrosion Resistant: Ductile iron crankshafts provide superior strength and thermal stress resistance compared to standard steel.

Technical Specifications:

Power: 5 – 15 hp.
Pump: Splash Lubricated (Slow RPM).
Package: Simplex, Duplex, Gas Driven.
Warranty: 5-Year UltraShield available.

More Information

Request Quote

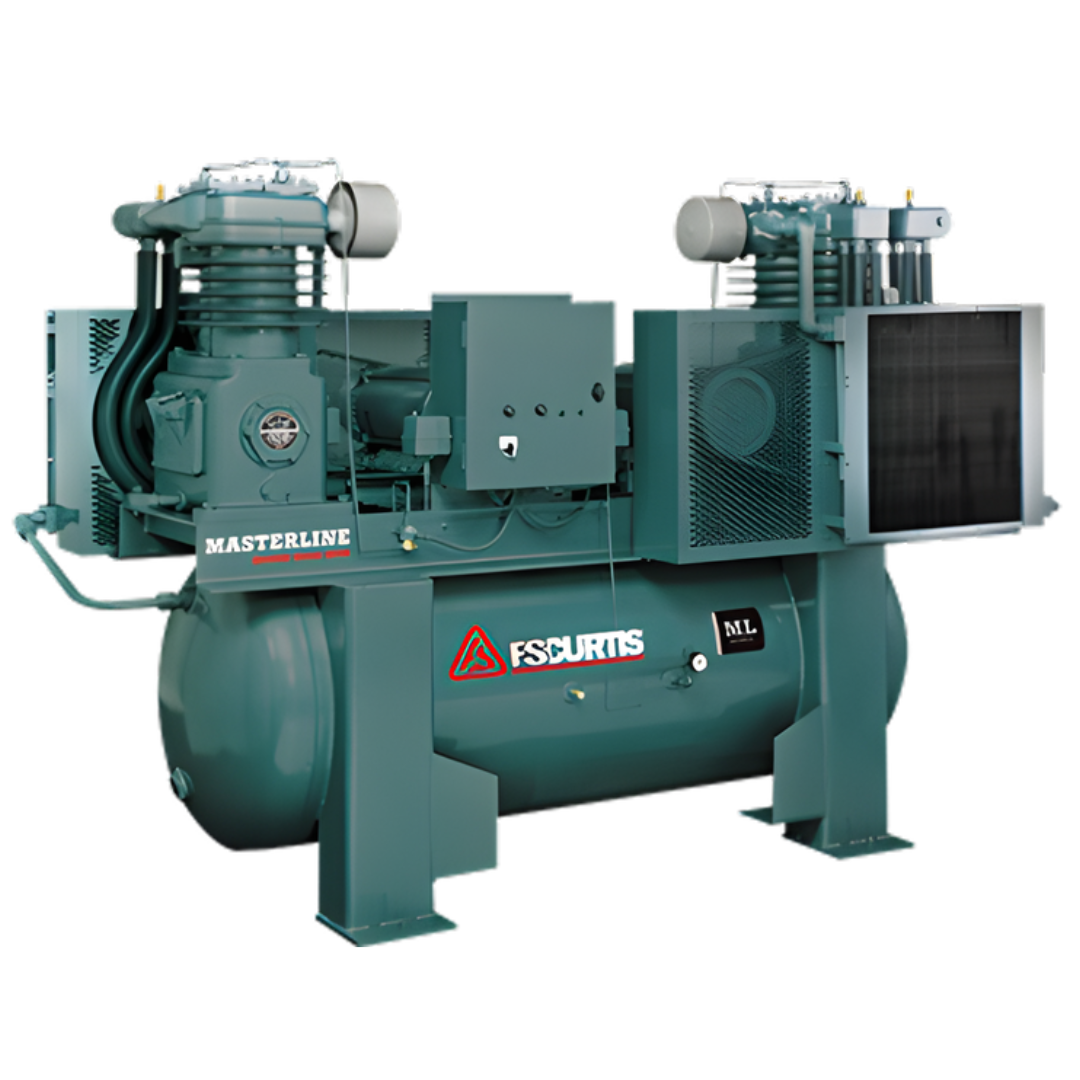

ML Series (Masterline)

Pressure-Lubricated Industrial Compressors

The Masterline (ML) Series is built for 100% continuous duty in the most demanding industrial environments. Featuring FS-Curtis’s exclusive Centro-Ring pressure lubrication system, it delivers pressurized oil internally to all critical bearings, ensuring maximum uptime and preventing wear even during intense operation.

Key Features:

Centro-Ring Lubrication: A patented design that forces oil through a rifle-drilled crankshaft to connecting rods and bearings, superior to splash systems.
Continuous Duty: Engineered to run 24/7 without overheating, thanks to massive cast-iron construction and premium finned intercoolers.
Component Longevity: Oversized tapered main roller bearings and slow operational speeds significantly extend the pump’s lifespan.
Metal Intake Filter: Equipped with a heavy-duty metal intake filter/silencer that outperforms plastic alternatives in harsh environments.

Technical Specifications:

Power: 5 – 30 hp.
Lubrication: Pressure (Centro-Ring).
Duty: 100% Continuous.
Construction: Heavy-Duty Cast Iron.

More Information

Request Quote

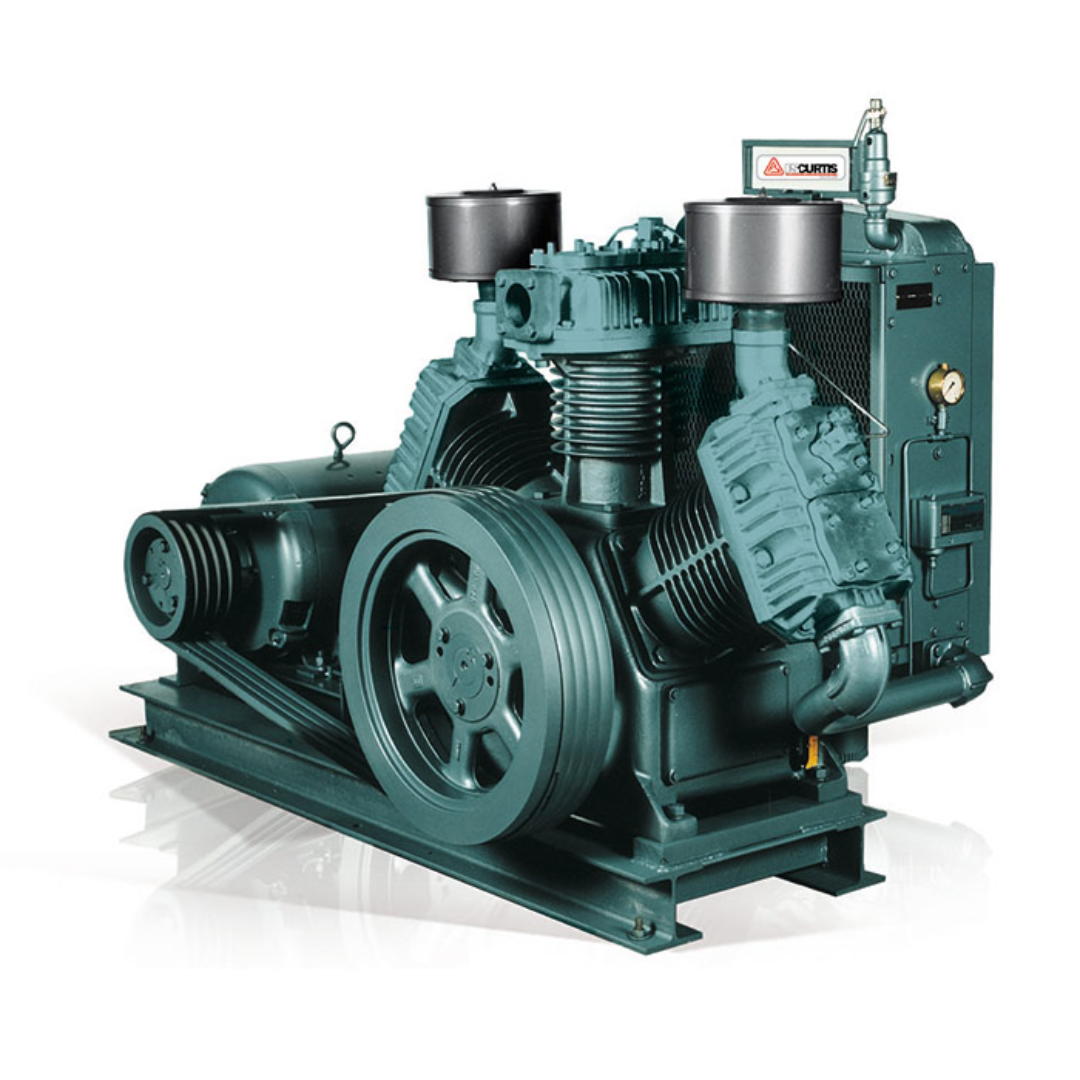

CW Series

Large Industrial Compressors

The CW Series is the titan of reciprocating compressors, designed for large-scale industrial facility air. With models up to 125 hp and pressure capabilities reaching 250 psi, these low-RPM, pressure-lubricated units offer unsurpassed reliability for power plants, engine starting, and heavy manufacturing.

Key Features:

High-Pressure Capability: Delivers up to 250 psi, making it suitable for specialty applications like plastic blow molding or engine starting.
Low RPM Design: Large, slow-turning pumps reduce wear and noise, ensuring an extended service life with minimal maintenance.
Robust Build: Features a ductile iron crankshaft and oversized tapered roller bearings to handle high-torque loads.
Specialty Options: Available for adverse conditions, vacuum applications, and climate control configurations.

Technical Specifications:

Power: 30 – 125 hp.
Pressure: Up to 250 psi.
Lubrication: Pressure Lubricated.
Stages: Single and Two Stage.

More Information

Request Quote

Reciprocating Compressors

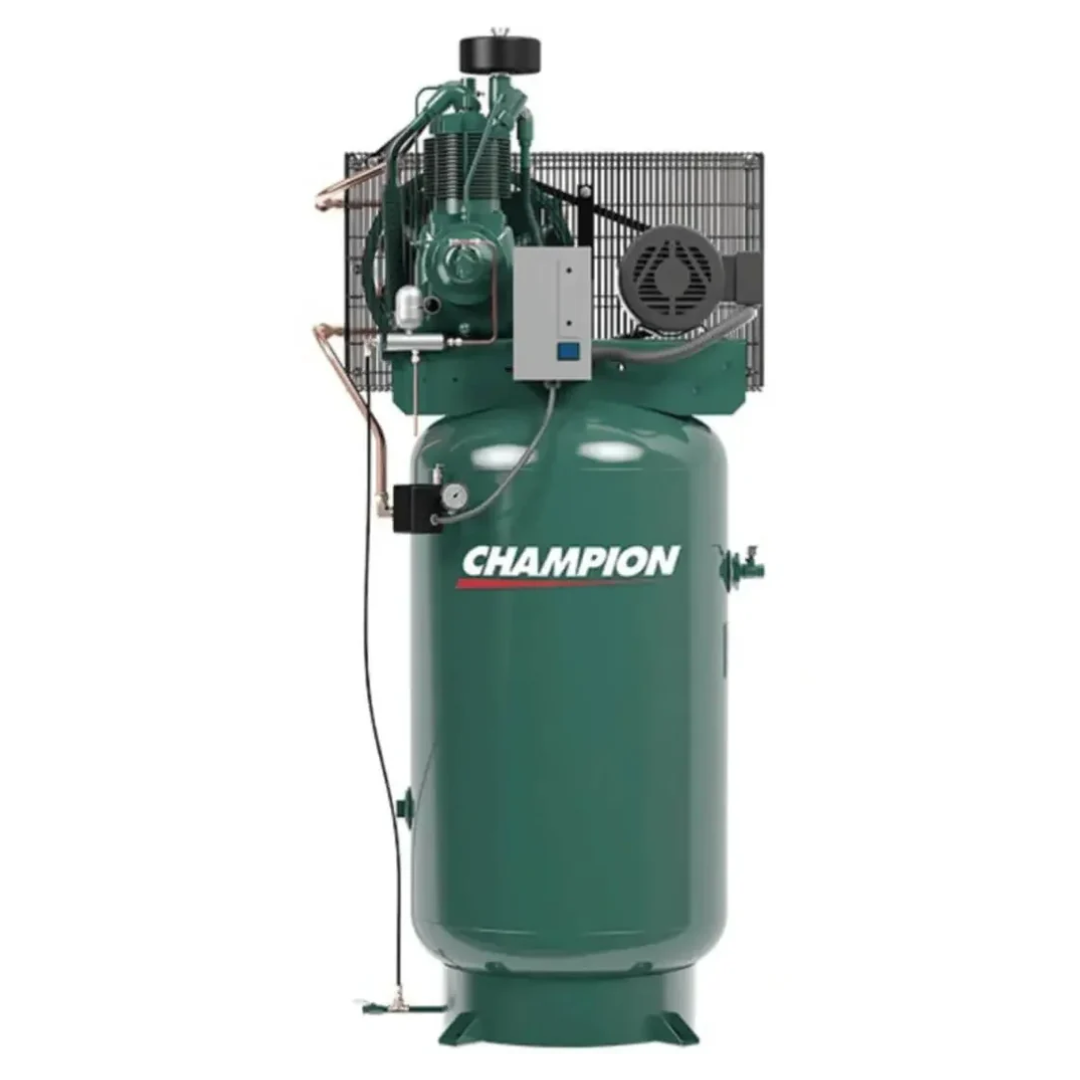

Champion PL & R-Series

Lubricated Reciprocating Compressors

Champion’s air-cooled reciprocating compressors are the versatile workhorses of the compressed air world. From light industrial single-stage units to multi-stage plant air providers, the R-Series and PL-Series offer rugged features and a wide selection of configurations, including gas and diesel drives for remote work.

Key Features:

Adaptable Configuration: Available in splash or pressure-lubricated models to match specific duty cycles and budget requirements.
Remote Power Options: Can be configured with gas or diesel engines for field service trucks and sites without electricity.
Rugged Reliability: Built with heavy-duty components designed to withstand years of hard use in automotive and industrial shops.
Complete Packaging: Options include tank-mounted or base-mounted units with fully integrated controls.

Technical Specifications:

Power: 1/2 – 30 hp (0.37 – 22 kW).
Power Source: Electric / Gas / Diesel.
Frequency: 50 or 60 Hz.

More Information

Request Quote

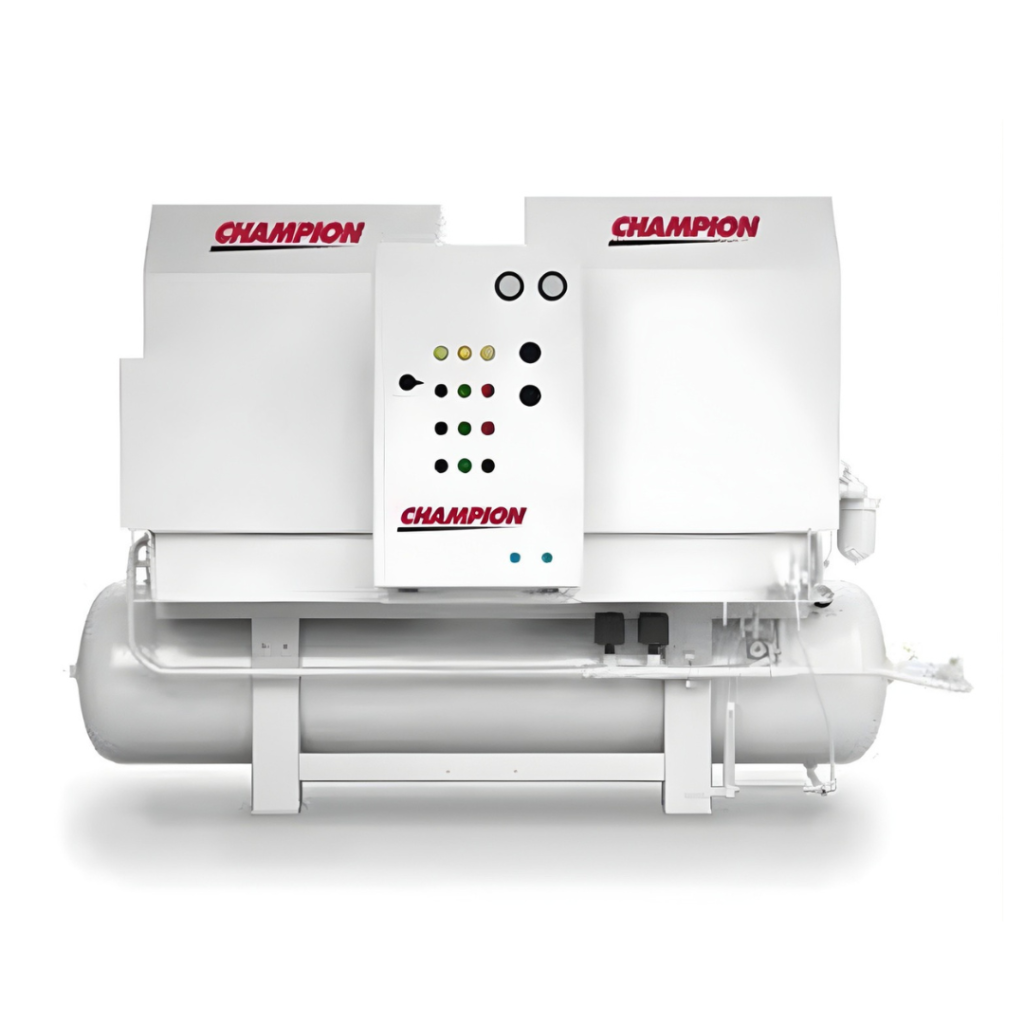

Champion V & W Series

Oil-Free Medical & Lab Compressors

The Champion V & W Series utilizes advanced oil-less technology to deliver pure, contaminant-free air for medical, laboratory, and electronic manufacturing. With internal parts protected by sealed synthetic lubricants and heat-resistant Teflon guides, these units meet strict NFPA 99 standards for healthcare facilities.

Key Features:

100% Oil-Less Air: Pistons move on alloyed, heat-resistant Teflon guides, ensuring zero oil enters the compression chamber.
Medical Compliance: Designed to meet NFPA 99 standard requirements, making it safe for hospitals and patient care.
Low Maintenance: The sealed crankcase design eliminates the need for oil changes and reduces routine service downtime.
Flexible Systems: Available in Duplex, Triplex, and Quad packages to provide redundancy and meet fluctuating demand.

Technical Specifications:

Power: 3/4 – 15 hp (0.56 – 11 kW).
Flow: 15.8 – 138 ACFM.
Pressure: Up to 175 psig.
Cooling: Air or Water Cooled options.

More Information

Request Quote

Maximize Your system Performance

A compressor is only the heart of the system. Protect your downstream equipment and ensure ISO 8573-1 compliance with our matched air treatment, storage, and distribution solutions.

Air Treatment

Dryers & Filters to ensure ISO 8573-1 compliance.

Air Receivers

Storage tanks for system stabilization.

Piping Systems

Efficient aluminum piping for minimal pressure drop.

Not sure which Compressor size you need?

Let our engineers run a free sizing calculation to ensure you get the right machine for your facility.

Speak to an Engineer
