Pumps & Fluid Handling

Fluid pumps or industrial pumps are designed specifically to be used in harsh application areas. They move various materials, such as heavy chemical fluids, food, water, oil, petroleum, sludges, slurries, waste and even beer.

Proven Performance & Legendary Durability

For over 50 years, oil-flooded rotary screw compressors have been the workhorse of modern industry. Blackhawk Equipment partners with Sullair to deliver solutions that go beyond basic air compression. Our units feature US-engineered rotors and optimized air ends designed to lower your kW/cfm ratio—delivering maximum air power with minimum energy consumption.

Whether for general manufacturing, automotive, or heavy-duty industrial applications, our oil-flooded systems offer a maintenance-friendly design and some of the quietest dBA ratings on the market.

10-Year Diamond Warranty

Standard on most models for long-term peace of mind.

Sullube® Lubricant

10,000-hour non-varnishing, biodegradable fluid life.

US-Engineered Rotors

Time-proven Sullair air end technology for superior longevity.

Industrial Fluid Pumps

In-Line Single Stage Pumps

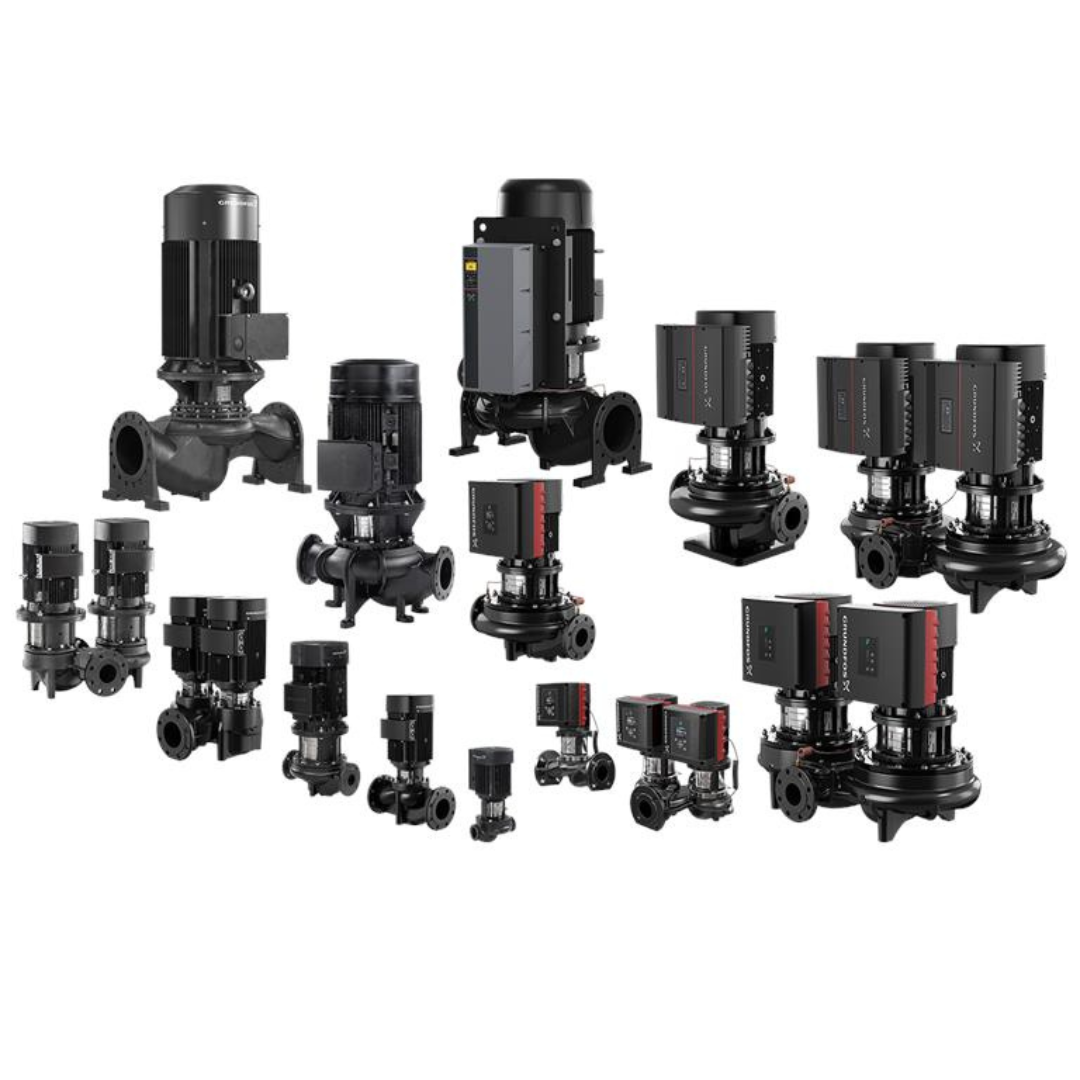

TP & TPE Series Centrifugal Pumps

The Grundfos TP and TPE series are robust, single-stage, close-coupled centrifugal pumps designed for a wide variety of heating, cooling, and district energy applications. Available with standard motors (TP) or ultra-efficient speed-controlled motors (TPE), these in-line pumps offer a compact mechanical shaft seal design that simplifies maintenance and installation.

  • Space-Saving In-Line Design: Vertical and horizontal configurations allow for straight-pipe installation, reducing footprint in mechanical rooms.
  • Energy Optimization: TPE models feature integrated frequency converters (VFD) that automatically adjust speed to match demand, significantly lowering energy costs.
  • Versatile Application: Ideal for hot water recirculation, commercial heating, and industrial cooling loops.
  • Durable Construction: Electro-coated cast iron housing provides superior corrosion resistance for water utility markets.
  • Flow: Up to 4,500 GPM.
  • Head: Up to 450 ft.
  • Liquid Temp: -13°F to +284°F (-25°C to 140°C).
  • Max Pressure: Up to 362 psi (25 bar).

Multistage Fluid Pumps

CR & CRN Vertical Multistage Pumps

The Grundfos CR series is the world’s most versatile vertical multistage centrifugal pump, known for its reliability in high-pressure boosting applications. With suction and discharge ports on the same level (in-line), these pumps are easily installed in complex piping systems and are available in various material grades to handle water, chemicals, and oils.

  • High-Pressure Boosting: Multistage impeller design generates high pressures required for boiler feed, reverse osmosis, and washdown systems.
  • Material Flexibility: Available in Cast Iron (CR), 304 Stainless Steel (CRI), and 316 Stainless Steel (CRN) to suit aggressive fluids.
  • High Efficiency: Optimized hydraulics and premium motors ensure maximum output with minimal power consumption.
  • Dry-Running Protection: Options available with LiqTec sensors to protect the pump from damage during low-flow conditions.
  • Flow: Up to 1,000 GPM (Standard CR).
  • Head: Up to 1,000 ft.
  • Pressure: Up to 725 psi (50 bar).
  • Motor: NEMA Premium Efficiency / TEFC.

Submersible Well Water Pumps

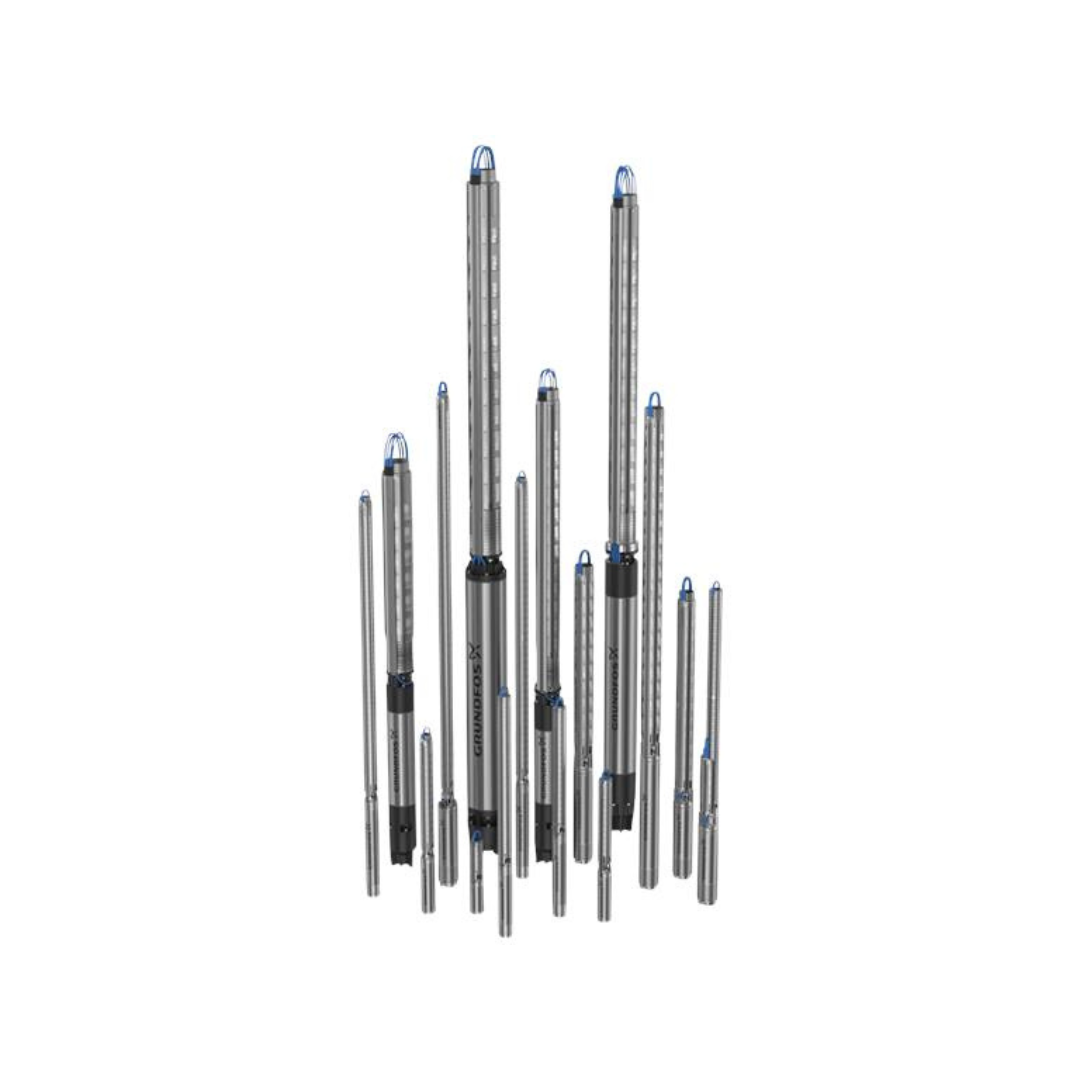

SP Series Borehole Pumps

Grundfos SP pumps are renowned for their high efficiency and resistance to sand and other abrasives. Constructed entirely from corrosion-resistant stainless steel, these submersible pumps are the industry standard for groundwater supply, irrigation, and dewatering in boreholes ranging from 4″ to 10″ in diameter.

  • 100% Stainless Steel: Built entirely from stainless steel (AISI 304, 316, or 904L) for unmatched durability in corrosive groundwater.
  • Hydraulic Efficiency: State-of-the-art hydraulics minimize energy costs, which is critical for continuous-duty well pumping.
  • Sand Resistance: Octagonal bearings and sand flush channels prevent wear in abrasive well conditions.
  • Motor Protection: Built-in protection against over-temperature (Tempcon) ensuring long motor life deep underground.
  • Sizes: 4″, 6″, 8″, 10″ (and larger).
  • Flow: Up to 1,400 GPM.
  • Head: Up to 2,000 ft.
  • Liquid Temp: Up to 140°F (60°C).

Wastewater Pumps

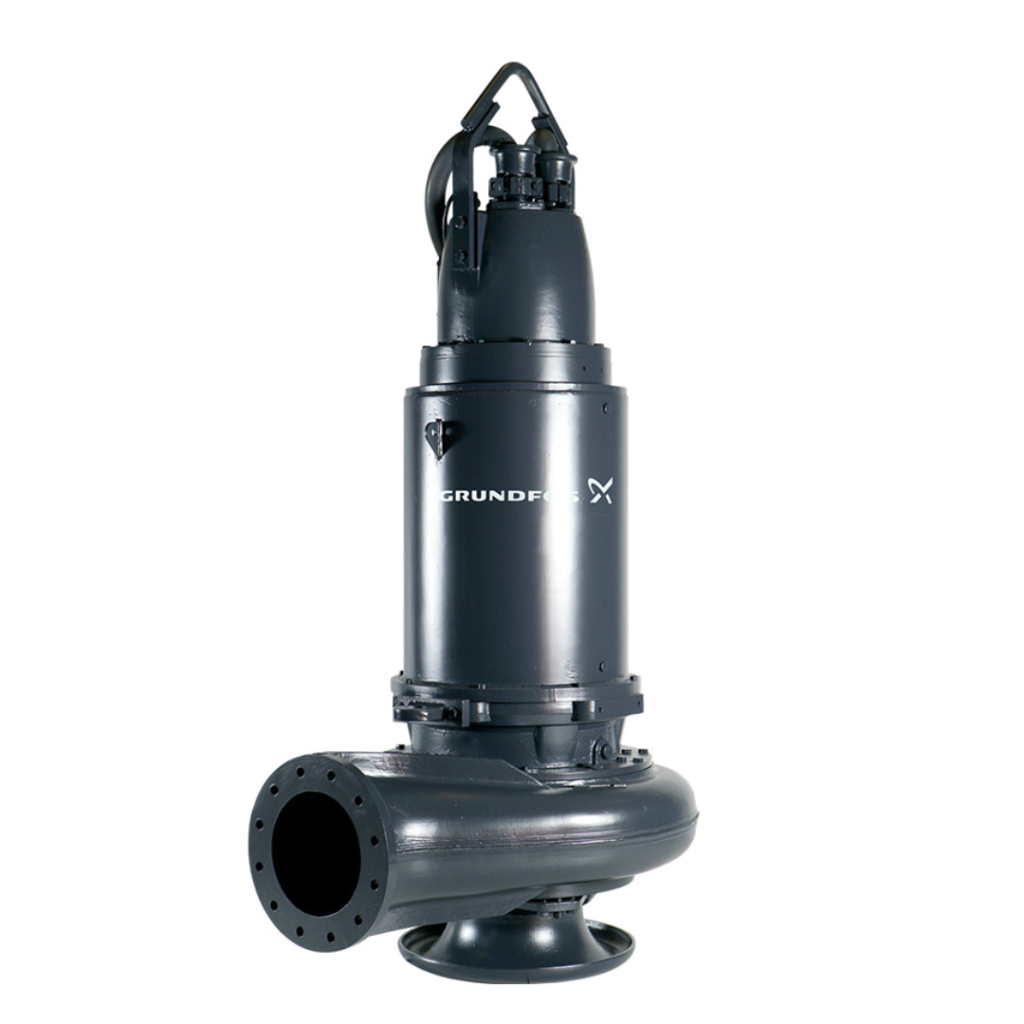

S-Series Sewage & Effluent Pumps

The Grundfos S-Series offers a range of heavy-duty enclosed centrifugal pumps designed for the transfer of raw sewage and wastewater. Featuring free-flow channel impellers or SuperVortex impellers, these pumps are engineered to handle large solids without clogging, suitable for both submerged and dry installations.

  • Non-Clog Design: Large free-passage channel impellers effectively handle solids, rags, and fibers found in municipal wastewater.
  • Installation Flexibility: Can be installed submerged (wet pit) or dry (vertical/horizontal) to fit existing lift station designs.
  • SmartSeal: Specialized shaft seal solution prevents leakage and protects the motor from fluid ingress.
  • Serviceability: Designed with a SmartTrim system that allows easy adjustment of the impeller clearance to maintain factory efficiency.
  • Solid Handling: Up to 5 inches (depending on model).
  • Flow: Up to 20,000 GPM.
  • Head: Up to 380 ft.
  • Discharge: 3″ to 24″ flange.

Dosing & Disinfection Pumps

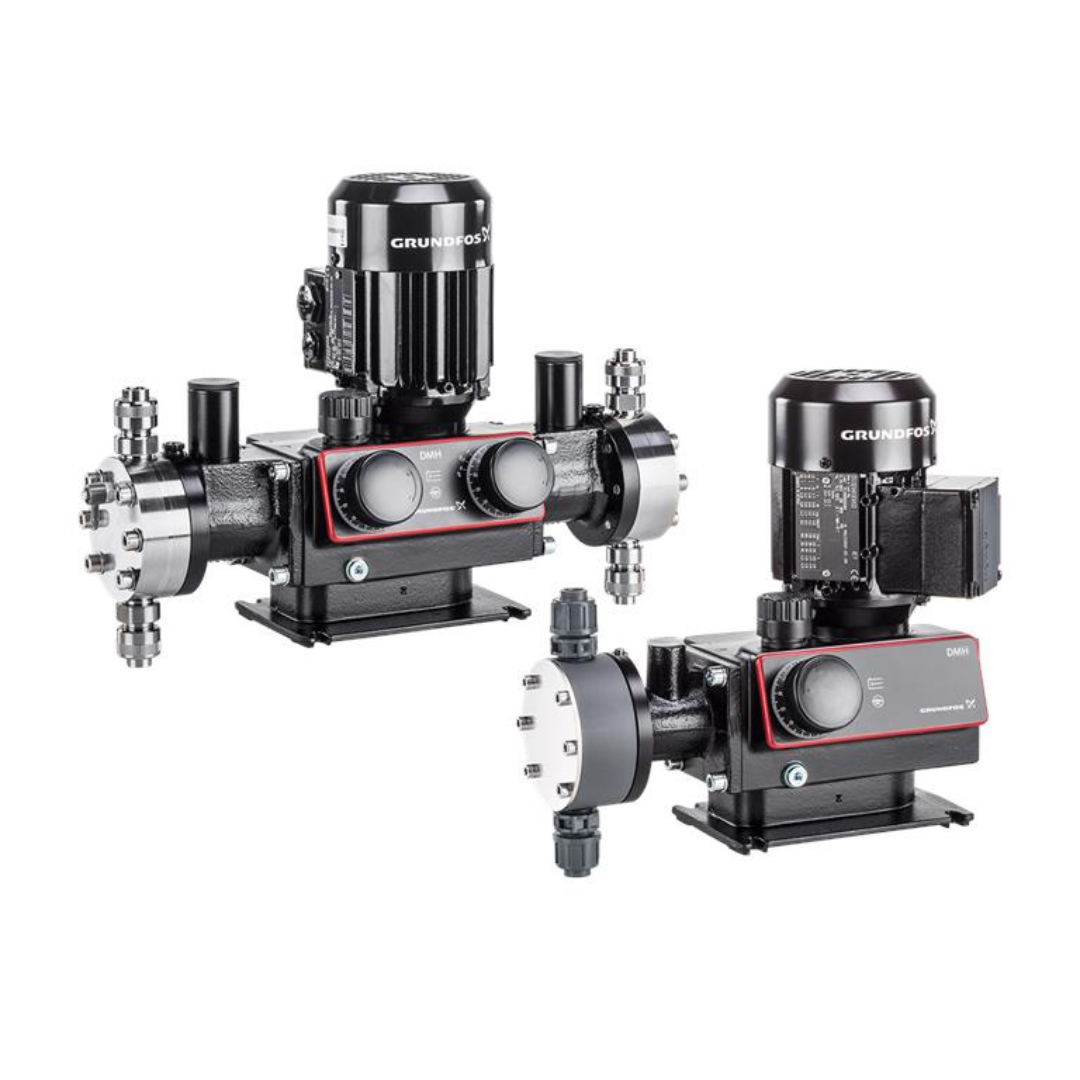

SMART Digital Dosing Pumps

Grundfos dosing pumps deliver high-precision chemical injection for flocculation, disinfection, and pH adjustment. Utilizing advanced stepper motor technology, these mechanical diaphragm pumps provide a massive turndown ratio and smooth continuous flow, ensuring process stability in water treatment applications.

  • Extreme Precision: High-resolution stepper motors allow for turndown ratios of up to 1:3000, eliminating the need for separate low-flow pumps.
  • Flow Intelligence: Integrated flow monitoring and auto-calibration ensure the exact chemical volume is dosed regardless of pressure fluctuations.
  • Chemical Resistance: Pump heads available in PVC, PVDF, PP, and Stainless Steel to handle aggressive chemicals like Sodium Hypochlorite.
  • Safety: Features anti-cavitation logic and pressure monitoring to prevent vapor lock and line bursts.
  • Flow: 0.002 to 40 GPH (DDA/DDE models).
  • Pressure: Up to 232 psi (16 bar).
  • Control: 4-20mA, Pulse, Fieldbus.
  • Turndown: Up to 1:3000.

Industrial Process Pumps

CRT Titanium & ANSI Pumps

For the most extreme environments involving toxic, corrosive, or aggressive liquids, Grundfos offers the CRT and ANSI process series. The CRT models feature wetted parts made of Titanium, offering exceptional resistance to acids, alkalis, and seawater where stainless steel would fail.

  • Titanium Construction: Wetted components in high-grade Titanium provide immunity to corrosion from sea water, chlorides, and strong acids.
  • Leak-Free Reliability: Specialized mechanical seals (or magnetic drive options) ensure zero leakage of toxic or expensive fluids.
  • High-Temp Capable: Engineered to handle high process temperatures often found in chemical manufacturing and industrial washing.
  • Integrated Speed Control: Available with MGE motors (E-solutions) to adapt performance to process feedback loops.
  • Material: Titanium (CRT) / Stainless Steel.
  • Flow: Up to 100+ GPM.
  • Head: Up to 350+ ft.
  • Max Pressure: Up to 362 psi (25 bar).

Immersible Fluid Pumps

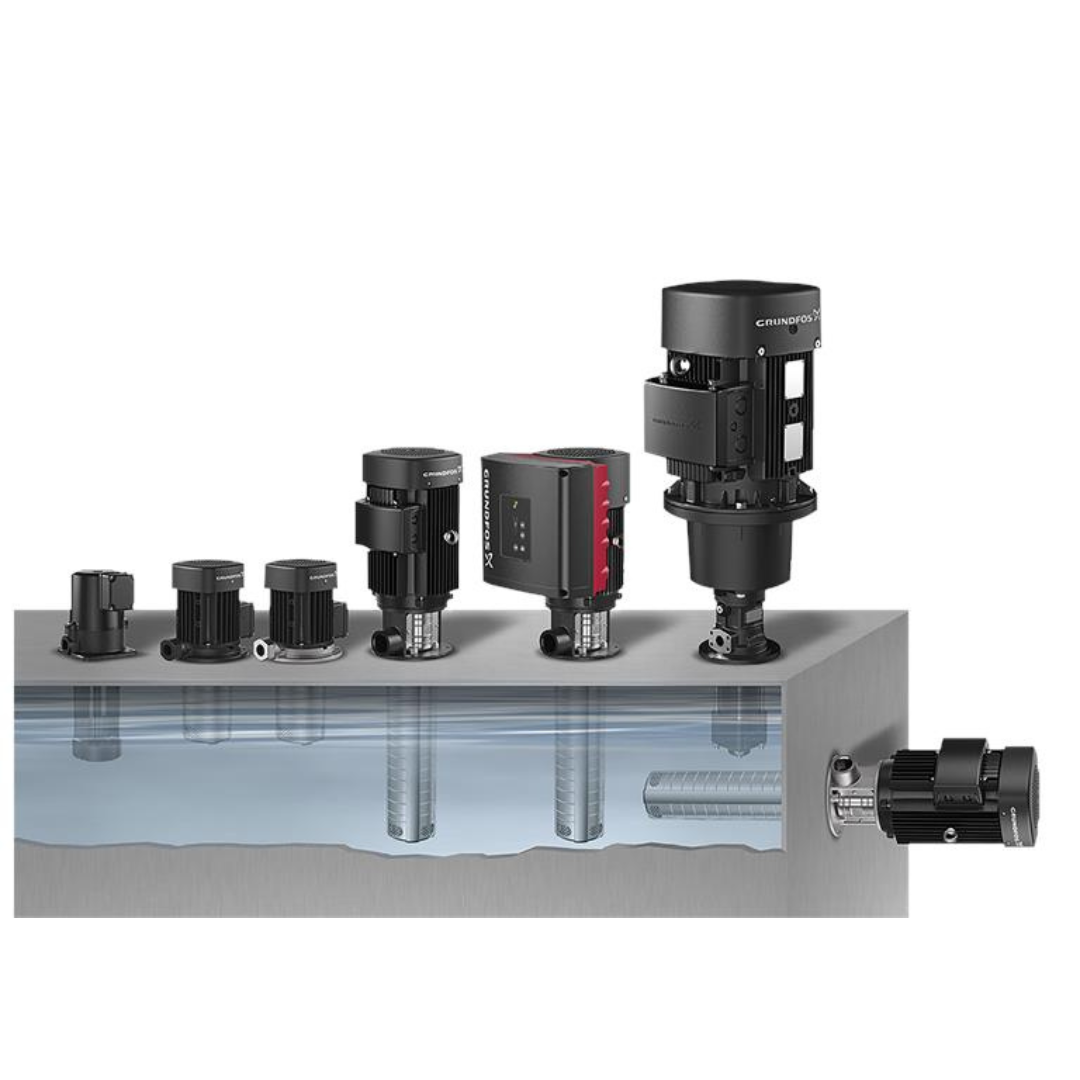

MTR & SPK Tank-Mounted Pumps

Designed specifically for mounting on top of tanks, the MTR and SPK series are vertical multistage centrifugal pumps ideal for machine tool coolants, parts washers, and condensate return systems. The pump hydraulic assembly is immersed in the liquid while the motor remains air-cooled above the tank.

  • Tank-Top Mounting: Direct installation onto tank lids saves floor space and simplifies piping.
  • Custom Lengths: The immersible pump stack length can be customized to match the tank depth and suction requirements.
  • Debris Handling: Specialized strainers and impeller designs allow the pumping of coolants containing chips and swarf.
  • Cartridge Seal: Allows for seal replacement in minutes without removing the pump from the tank.
  • Immersion Depth: Customizable (inches to feet).
  • Flow: Up to 400 GPM.
  • Head: Up to 800 ft.
  • Application: Coolant, Condensate, Washers.

Split Case Pumps

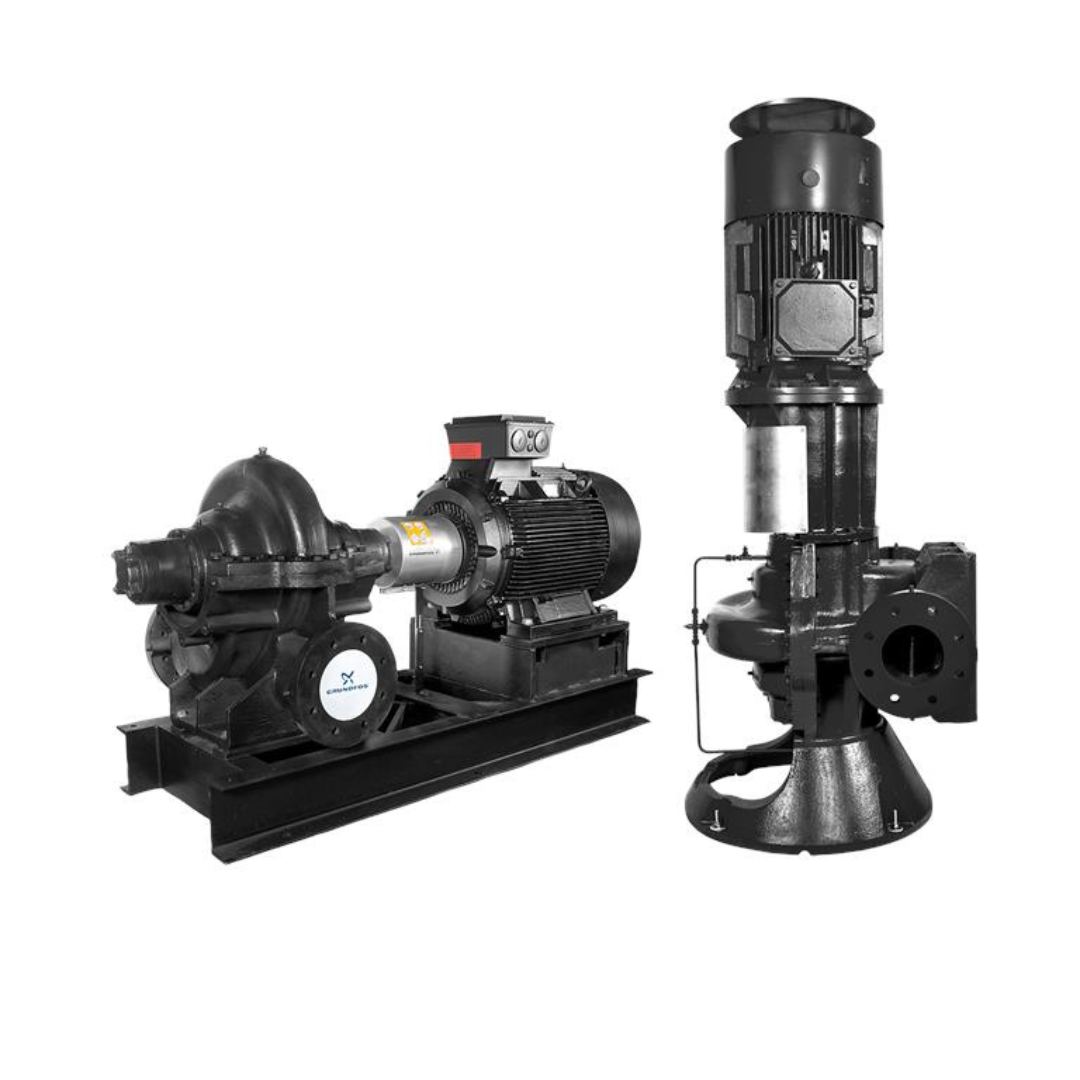

LS & LSV Horizontal/Vertical Split Case

For high-flow applications, the Grundfos LS (Horizontal) and LSV (Vertical) split case pumps offer a robust solution with high efficiency. Their split-casing design allows for easy access to rotating components without disturbing the piping or driver, making them ideal for large-scale municipal and industrial distribution.

  • Easy Maintenance: The upper casing can be removed to access the impeller and bearings without disassembling pipework or the motor.
  • High Efficiency: Double suction impeller design reduces axial thrust and improves hydraulic efficiency for massive energy savings.
  • Massive Capacity: Designed to move large volumes of water for district cooling, irrigation, and intake stations.
  • Configuration Choice: Available in horizontal (LS) or vertical (LSV) orientation to suit mechanical room layouts.
  • Flow: Up to 20,000+ GPM.
  • Head: Up to 500+ ft.
  • Efficiency: High wire-to-water efficiency.
  • Design: Double Suction / Split Case.

Pump Controls & Monitoring

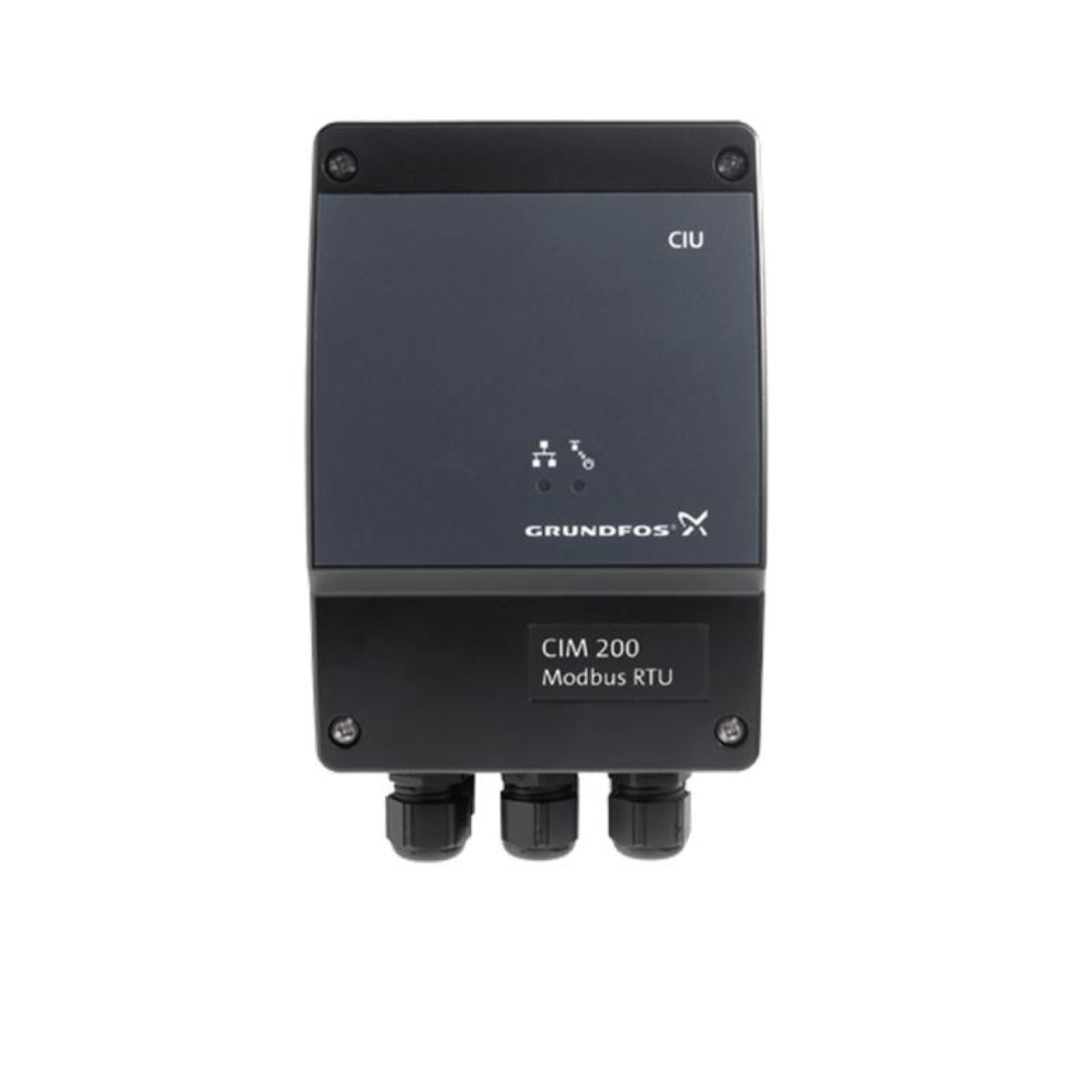

CIM & CU Control Interfaces

Modern pump efficiency relies on intelligent control. Grundfos Communication Interface Modules (CIM) and Control Units (CU) enable seamless integration of pumps into Building Management Systems (BMS) and SCADA networks.

  • Universal Connectivity: Connects Grundfos pumps to wide fieldbus standards including Modbus, Profibus, BACnet, and LonWorks.
  • Real-Time: Monitors critical parameters such as energy consumption, flow, pressure, and thermal load in real-time.
  • Remote Management: Enables remote setpoint adjustment and alarm monitoring, reducing the need for on-site inspections.
  • Multi-Pump Control: Control units can sequence multiple pumps (cascading) to match system load perfectly.
  • Protocols: Modbus RTU/TCP, BACnet, Profibus DP, etc.
  • Compatibility: Grundfos E-pumps and Controllers.
  • Mounting: Internal (in-pump) or DIN-rail.
