Piping Systems

In order to eliminate leaks and ensure the integrity of your air piping systems, a great choice is to have Blackhawk Equipment install Infinity piping systems. Infinity air piping systems feature corrosion-free aluminum, which is at least ten times lighter than conventional piping systems. This makes it much easier to install and to expand lines if necessary, and since it’s corrosion-free, you won’t have to worry about deposits developing on the pipes. The leak-free connectors on Infinity air piping systems guarantee that there will be no leakage around fittings.

Proven Performance & Legendary Durability

For over 50 years, oil-flooded rotary screw compressors have been the workhorse of modern industry. Blackhawk Equipment partners with Sullair to deliver solutions that go beyond basic air compression. Our units feature US-engineered rotors and optimized air ends designed to lower your kW/cfm ratio—delivering maximum air power with minimum energy consumption.

Whether for general manufacturing, automotive, or heavy-duty industrial applications, our oil-flooded systems offer a maintenance-friendly design and some of the quietest dBA ratings on the market.

10-Year Diamond Warranty

Standard on most models for long-term peace of mind.

Sullube® Lubricant

10,000-hour non-varnishing, biodegradable fluid life.

US-Engineered Rotors

Time-proven Sullair air end technology for superior longevity.

Aluminum Piping Systems

Infinity Series (20mm – 63mm)

High-Performance All-Metal Airnet

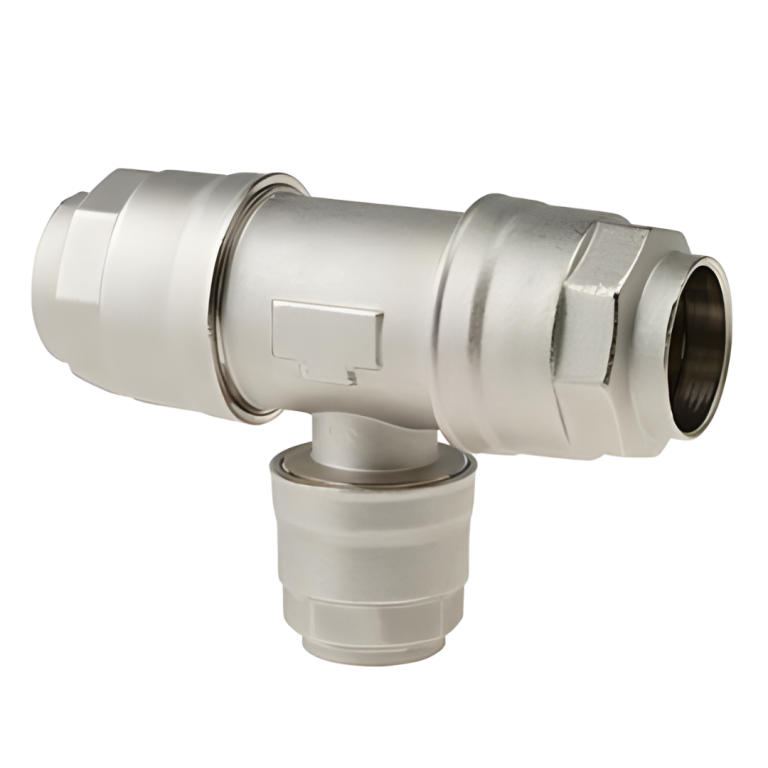

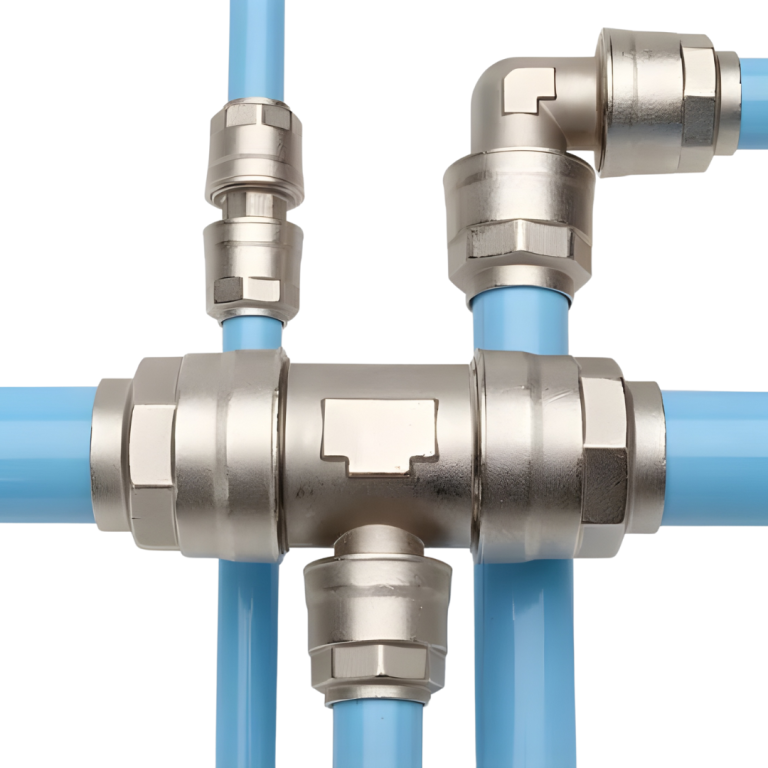

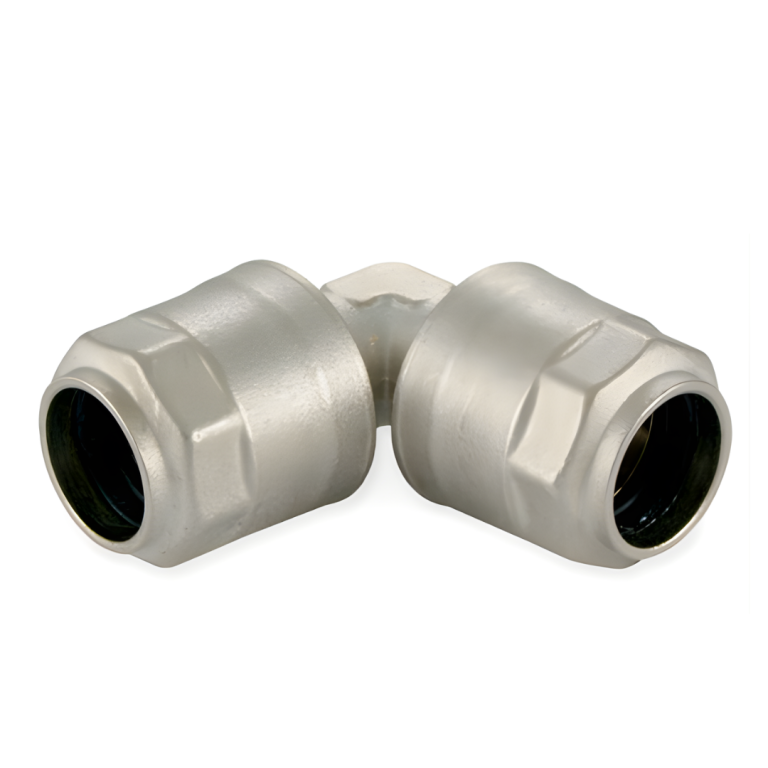

The Infinity piping system is the industry standard for compressed air distribution, featuring a heavy-duty, all-metal construction. Unlike plastic systems that can become brittle or traditional steel that corrodes, Infinity combines the lightweight durability of powder-coated aluminum tubing with robust nickel-plated brass fittings for a leak-free, zero-corrosion solution.

  • Zero Leak Technology: Patented “push-to-connect” fittings utilize a collet gripper and seal for an immediate, unbreakable, leak-free connection.
  • Rapid Installation: No threading, soldering, or glue required. The system is so light it can be installed by one person, significantly reducing labor costs.
  • Corrosion Immune: The non-ferrous aluminum construction is impervious to air contaminants and moisture, preventing rust buildup that restricts flow and damages tools.
  • Modular Design: Fittings are fully reusable, allowing for easy modifications or expansion of the air network without cutting pipe.

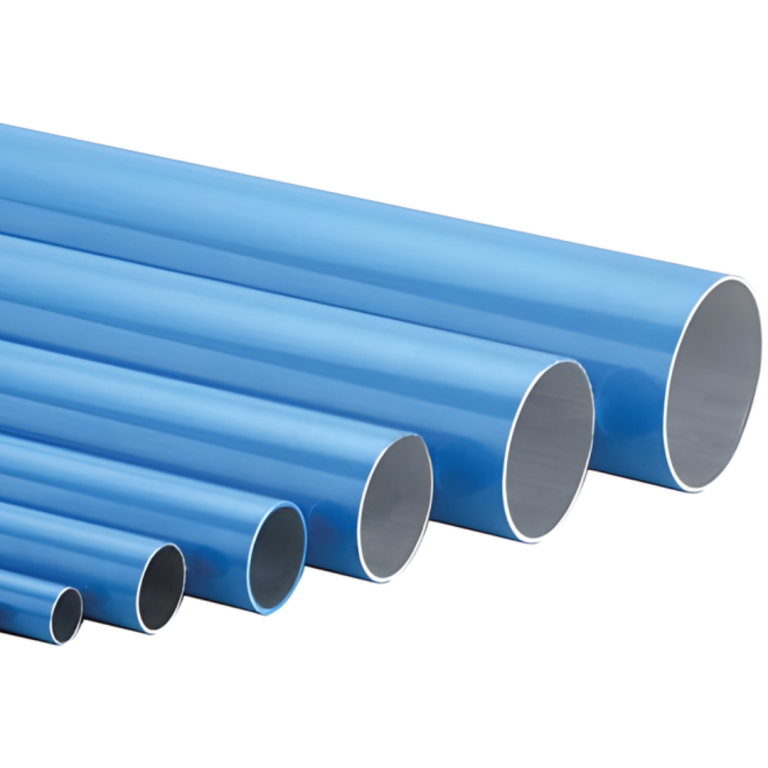

  • Sizes: 20mm, 25mm, 32mm, 40mm, 50mm, 63mm.
  • Material: Marine Grade Aluminum / Nickel-Plated Brass.
  • Media: Compressed Air (Blue), Nitrogen/Inert Gas (Gray/Black).
  • Compliance: ASME B31.1 / OSHA.

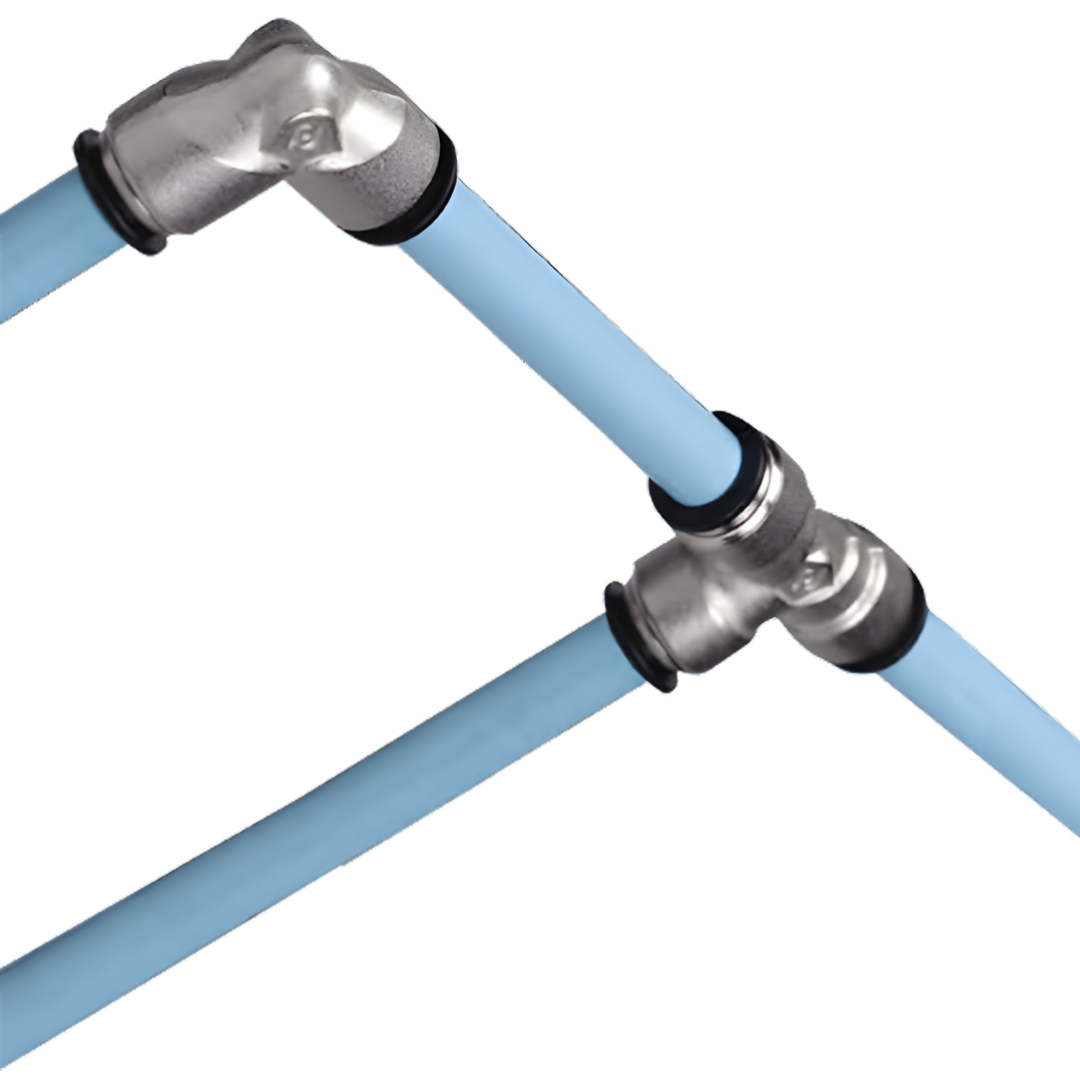

Quick-Fit Series (14mm)

OEM & Light Commercial Piping

Designed for machine drops, OEM integration, and light commercial applications, the Quick-Fit 14mm (1/2″) system offers the ultimate in flexibility. It combines the durability of marine-grade aluminum with the speed of an instant push-connect design, allowing for tool-free installation in literally seconds.

  • Instant Connection: Push-to-connect design allows for immediate system pressurization with no curing time.
  • Lifetime Durability: Features solid brass, nickel-plated fittings that will never corrode or degrade, unlike plastic push-fittings.
  • Flexible Routing: The unique 14mm tubing is rigid enough to stay in place but allows for simple bending and routing around machine components.
  • OEM Ready: Ideal for integrating air distribution directly into manufacturing equipment or workbenches.
  • Size: 14mm (1/2″).
  • Fitting Type: Push-Connect (Brass).
  • Warranty: Lifetime Guarantee.

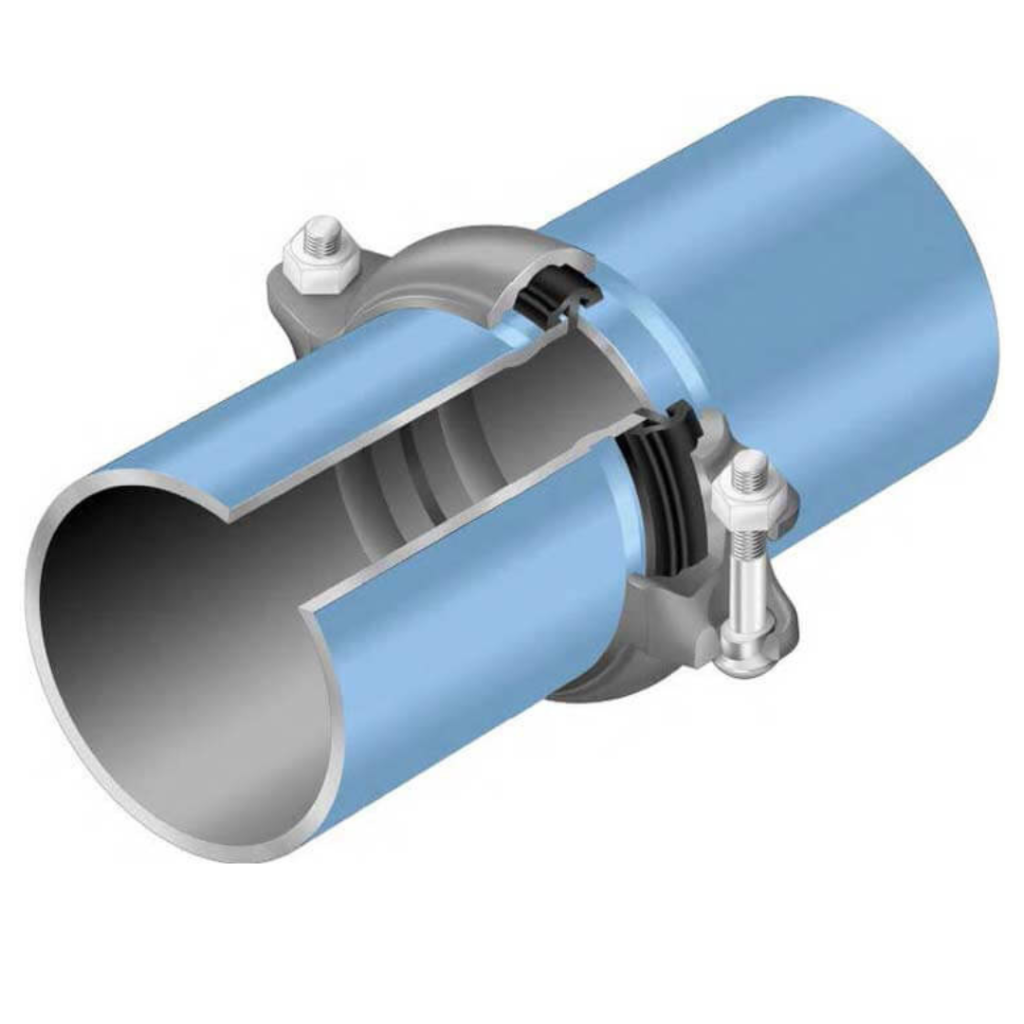

Elevation Series (70mm – 273mm)

Large Diameter Industrial Headers

The Elevation Series revolutionizes large-bore piping (2 ½” – 10”) by replacing heavy carbon steel with high-tech aluminum alloy. It is the lightest product on the market—1/10th the weight of steel—which simplifies rigging and reduces structural load. The smooth bore extruded tubing ensures laminar flow, eliminating turbulence and providing the lowest possible pressure drop for high-volume systems.

  • Unmatched Efficiency: Smooth-bore tubing eliminates the friction and turbulence found in steel pipe, allowing for higher flow rates with minimal pressure loss.
  • Lightweight Install: At 1/10th the weight of steel, it can often be installed without heavy lifting equipment, making it the fastest-installed large diameter system available.
  • Corrosion Free: Guaranteed highest quality air delivery with zero risk of pipe scale or rust contaminating downstream equipment.
  • Versatile Media: Fully tested and code-approved for Compressed Air, Vacuum, and Inert Gas systems.
  • Sizes: 70mm (2.5″), 90mm (3″), 110mm (4″), 168mm (6″), 273mm (10″).
  • Pressure Drop: Lowest in class (Laminar Flow).
  • Warranty: Exclusive Lifetime Warranty.
  • Sustainability: Manufactured from 100% recyclable materials.



Maximize Your system Performance

A compressor is only the heart of the system. Protect your downstream equipment and ensure ISO 8573-1 compliance with our matched air treatment, storage, and distribution solutions.

Air Treatment

Dryers & Filters to ensure ISO 8573-1 compliance.

Air Receivers

Storage tanks for system stabilization.

Piping Systems

Efficient aluminum piping for minimal pressure drop.

Not sure which Compressor size you need?

Let our engineers run a free sizing calculation to ensure you get the right machine for your facility.
